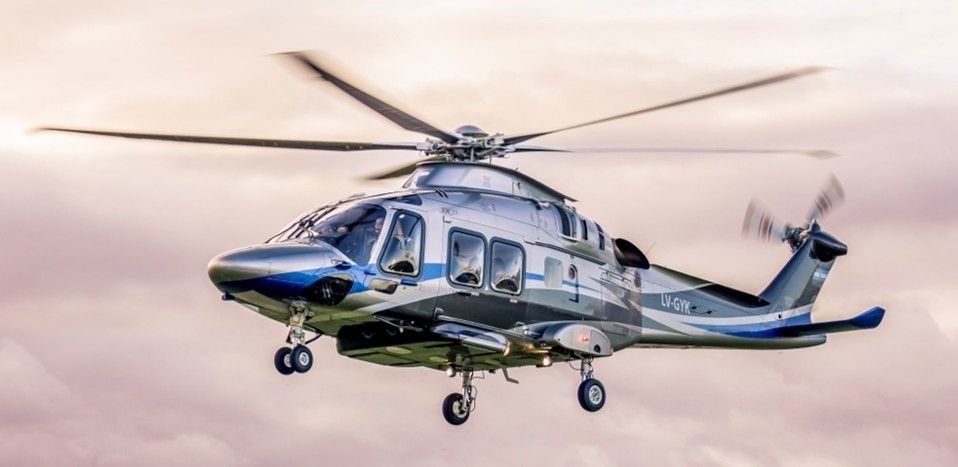

AW169 2016

Informações gerais

• Horas desde novo: 225h
• Dois proprietários desde novo
• 7 Pax VIP Interior Layout
• Complete and Original Records since New
• Soundproofing – CMS – Air Conditioning
• TCAS III – ADS-B – HUMS – FDR
• Synthetic Vision – Enhanced Vision
• Sem histórico de acidentes
• Poderá ser entregues com as fases 6 e 8
• Possui provisões para instalação de Weather Radar

Célula

Horas totais de célula: 225h

Year of Manufacture: September, 2016
Entry Into Service: March, 2017
Total Hours Since New: 225
Total Landings Since New: 417
Home Base: Buenos Aires, Argentina

Motores

Horas Totais (TTSN): (1) 225

Horas Totais (TTSN): (2) 225

Model: Pratt & Whitney PW210A

ENGINE 1
Serial Numbers: PCE-BP0039
Total Hours Since New: 225
Total Cycles Since New: 325

ENGINE 2
Serial Numbers: PCE-BP0012
Total Hours Since New: 225
Total Cycles Since New: 303

AVIÔNICOS & RADIOS

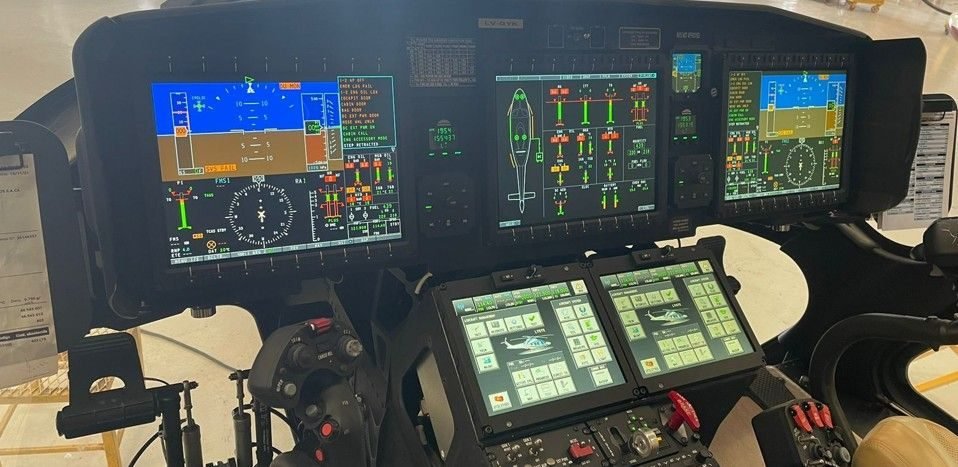

• Three Rockwell Collins Display Units 10” X 8” color AMLCD with LED backlight and NVIS compatibility:
• 2 Primary Flight Displays and 1 Multi-Function Display
• Integrated Standby Instrument System (ISIS)
• Two Display / cursor Control Panels/Devices (DCP/CCD)
• Reversionary Control Panel (RCP)
• Two Master Caution / Warning Lights (MCL/MWL)
• Two Avionics Full Duplex Ethernet (AFDX) switches
• Two Aircraft Monitoring & Management Computers (AMMC)
• Data Transfer Device (DTD)
• Two touch screen control panels
• Four Axis Automatic Flight Control System (AFCS)
• Two Flight Control Computer (FCC)
• Flight Control System (FCS) Control Panel
• Two VHF-AM radios
• Two NAV (VOR/ILS/MB) receivers
• One ADF / DME
• Transponder with Enhanced Surveillance Mode (Mode S)
• First SBAS GNSS (GPS)
• Second SBAS GNSS (GPS)
• Two Audio Control Panels (Pilot and Co-pilot stations)
• Audio Management Unit interfacing external transceivers
• Passenger Intercom Amplifier
• Two flux valves
• Two Air Data and Altitude Heading Reference Systems (ADAHRS)
• Dual Radar Altimeter
• Pilot Clock/Co-Pilot Clock
• TCAS III
• Moving map
• ADS-B Out
• Health and Usage Monitoring System (HUMS)
• Flight Data Monitoring system (FDM)
• Helicopter Terrain Avoidance and Warning System (HTAWS)
• Synthetic Vision System (SVS)
• Enhanced Vision System – MaxViz EVS-1500
• Rotor brake system
• One solid state Cockpit and Voice Flight Data Recorder with ULB
• One Emergency Locator Transmitter (ELT – 3 frequencies) (fixed)
• Approach plates chart holders with lights for pilot and co-pilot
• Co-pilot hinged window (storm window)

Equipamentos Adicionais

• Anti-icing fuel systems and two magnetic chip detectors (one per engine)
• Independent dual-channel FADEC systems (one per engine)
• Fire detection / extinguisher system
• Crashworthy fuel cells (1140 litres of usable fuel)
• Filler port for gravity refueling (on left hand side)
• Dual independent, redundant hydraulic system
• Retractable swiveling Landing / taxiing lights (2)
• Provisions Only for Weather Radar
• Aux fuel tank equipment
• Steps for cockpit / cabin access
• Overhead cockpit window sun shades
• First aid kit (as per JAR OPS 3)
• One cockpit and one cabin fire extingisher (as perJAR OPS 3)
• Pilot/ Co-pilot crashworthy adjustable seats (with inertial reels and separate 5 points safety belts)

Exterior

• Customized Paint Scheme – Overall Metallic Silver Paint
• Blue and Black accent stripes
• Retractable Landing Gear
• Electrically operated cabin dual step
• Baggage Compartment extension – Baggage smoke sensor
• Emergency Floats – Removable
• External Life Raft on Sponson – Removable

Interior

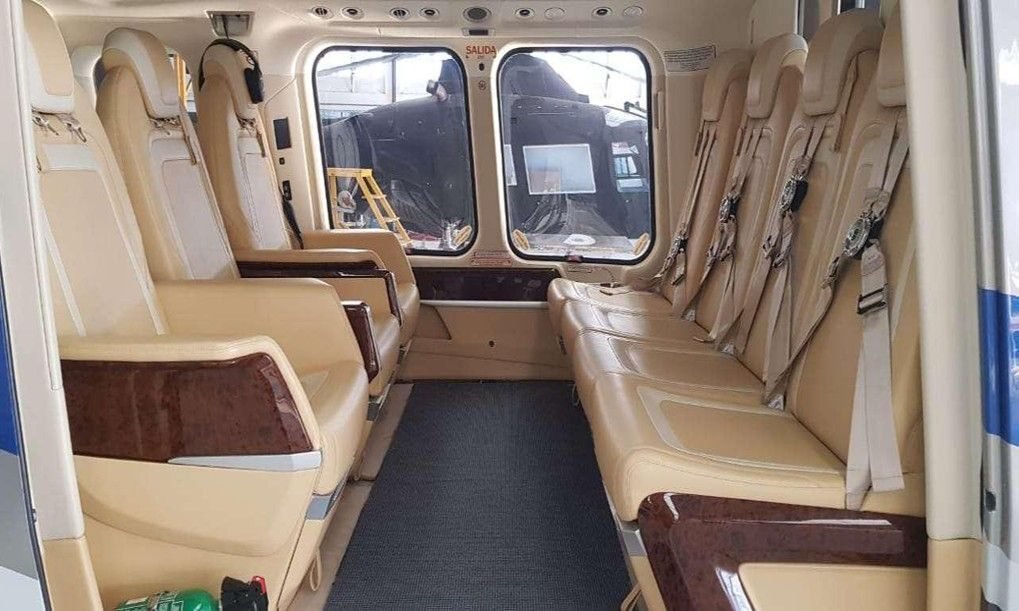

• VIP “Diamond” Interior Layout 7 Pax (4+3)
• Extended Cabin VIP Composite Liners leather/leatherette covered with enhanced soundproofing
• Cabin ambient Mood Multicolor – LED lights, white LED reading light – 4 Coat Hooks
• Environmental Control system (ECS) – Air Conditioning
• Inter-Communication System for all passengers – Headsets are Bose ANR type (Qty. 7)
• Customized Luxury cabin finishing and decoration trim with metal inserts
• Handmade customised passenger carpet
• Comfortable VIP seat leather covered sliding and with reclinable backrest (Aft Facing – Qty. 3)
• Side Armrest Cabinets (RH / LH) for aft facing seats – Armchairs leather covered (w inertial reel & safety belts) (Qty. 2)
• Central seat leather covered sliding and with reclinable and forward foldable backrest (Fwd facing)
• Separation wall leather covered with manual sliding window and roll up curtain on pilots side
• Basic Entertainment and Cabin Management System (CMS) including 4.3” Touch screen panel and one iPad mini for lighting system and ECS control
• Cabin Active Comfort Enhancer VIP
