BOEING BBJ 2009
Informações Gerais
2009 BBJ
Horas totais 2.950 horas totais
16 pax
Suíte com chuveiro
FANS
ADS-B
TCAS 7.1
Equipado com 7 tanques auxiliares de combustível
Célula
Horas totais de célula: 2943
Green Delivery December, 2008
Entry into Service November, 2009
Total Hours 2,943
Total Landings 1,018
Maintenance tracking VERYON (ex. FLIGHTDOCS)
Motores
Horas Totais (TTSN): (1) 2943
Horas Totais (TTSN): (2) 2943
Honeywell 131-9B
Total Hours 5,014
Aviônicos e Rádios
- COM: Collins VHF-920 – P/N 822-1250-002
- NAV: Collins VOR-900 – Receiver P/N 822-0297-001
- FMS: FMC (Smith Industries 2907C1) P/N 176200-01-01
- HF: Collins HFS-900 – P/N 822-0330-001
- ADF: Collins ADF-900 – P/N 822-0299-001
- DME: Collins DME-900 – Interrogator P/N 822-0329-001
- Transponder: Collins TPR-901 P/N 822-1338-205
- RADAR: Collins WRT-2100 – P/N 822-1710-001
- TCAS: Collins TTR-921 – Computer version 7.1 P/N 822-1293-033
- MMR: Collins GLU-2100 P/N 822-2532-100
- CVR: L3 P/N 2100-1020-00
- DFDR: L3 P/N 2100-4043-00
- EGPWS: Honeywell P/N 965-1690-052 Mark V
- ELT: ARTEX B406-4 P/N 453-5004
- SELCAL: TEAM INC. P/N SL3924AA01
- Data Loader: Teledyne P/N 2235300-01-1
- ADS-B Out V2
- CPDLC (FANS 1/A)
- Head-up Guidance System (Cat IIIa Capable)
- USB cockpit power outlets for EFB’s
- Collins Airshow 4000
- Satcom: Ku-Band and SBB
Equipamentos Adicionais
16 (pax) + 6 (crew)
Built-In Forward Airstair
Cabin Interior Noise Reduction Kit (STC ST01635LA)
Acoustic / Thermal Insulation (STC ST01568LA)
Aviation Partners Blended Winglets
Securaplane (tail fin) Video Camera (STC ST09878SC)
2x life rafts for 25 pax each and equipped with ELT
Modificações
PATS Seven auxiliary system tanks(2 FWD, 5 AFT)
Configuration 1-P

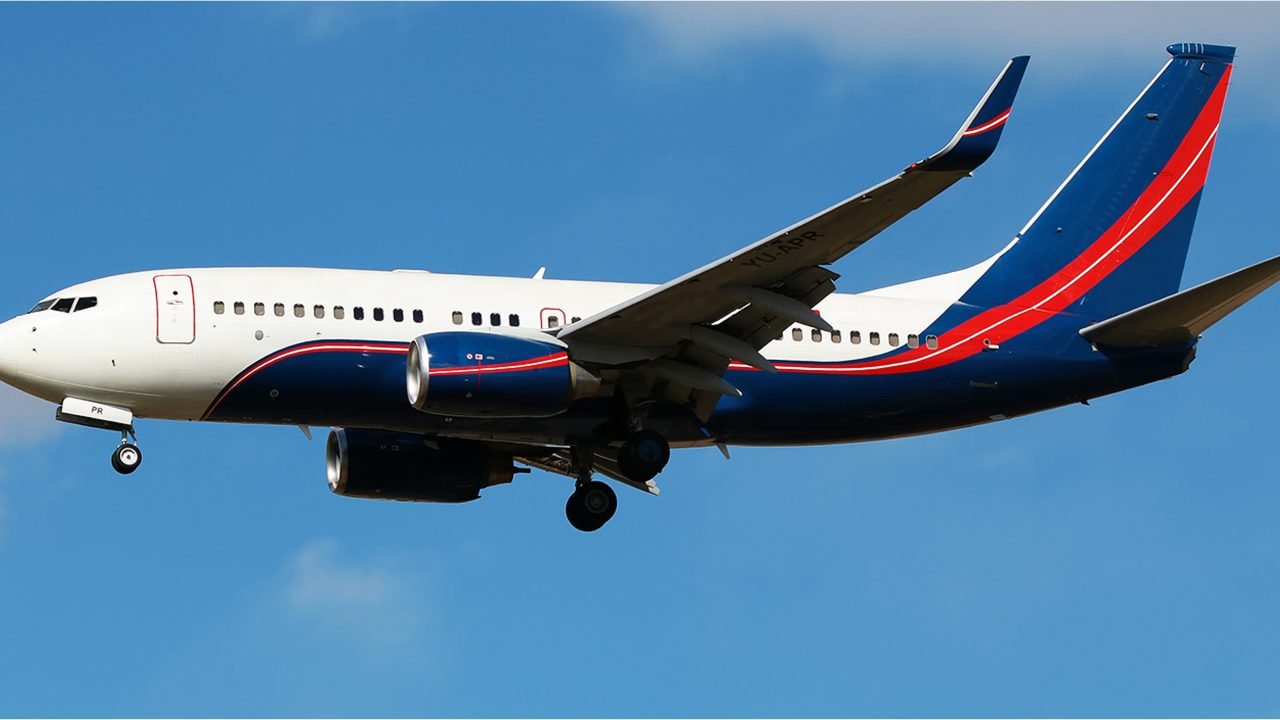

Exterior
White & Navy Blue w Red & White Accent Stripes
Interior
Greenpoint Interior Completion (STC ST01832SE)
The cabin is divided into the forward entry, crew lavatory, crew rest, guest lavatory, galley, pantry, lounge, dining/conference, guest bedroom, aft hallway, master bedroom, and master lavatory areas.
The forward cabin houses the lounge area, which is laid out with a right side conference/meeting group with a four place divan with two executive chairs and two Hi Lo tables. On the left side of the lounge area is a two place club style seating arrangement with entertainment cabinet

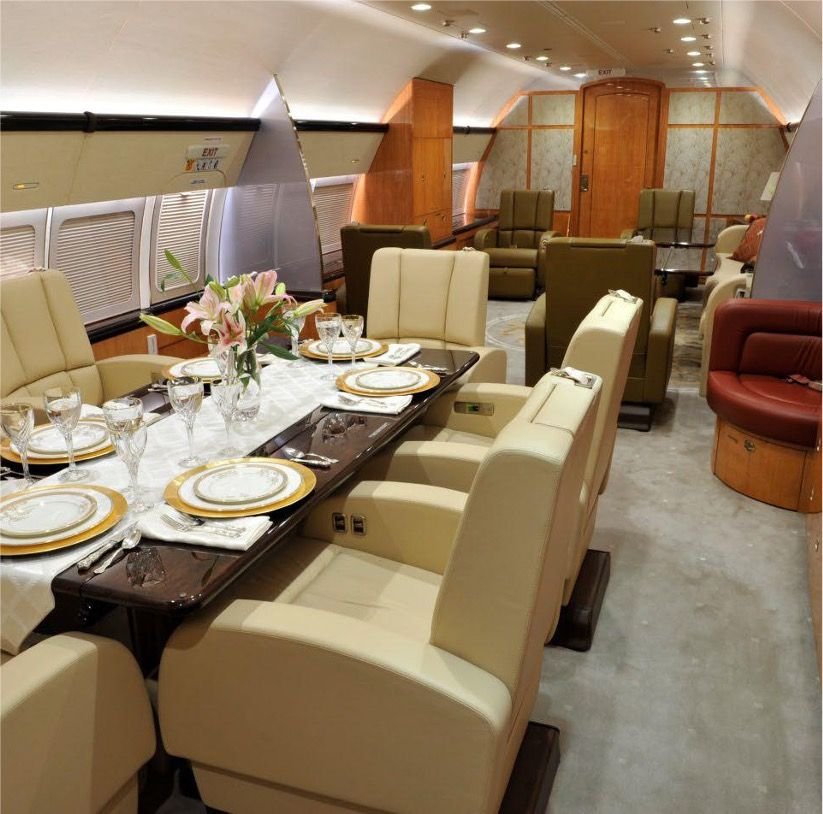

The mid cabin area houses a dining group made up of six individual executive style seats with a hi lo meeting/dining table. There is a full length credenza on the right side along with a corner observation/secretary chair.
On the aft bulkhead is a 42h flat screen TV/monitor.
The hallway, leaving the mid cabin on the right side, leads to a guest room that houses two three place divans that convert into a full size bed. There is a credenza with a 21hM TV/monitor on the left side of the guest room and the room can be made private by the sliding pocket door.

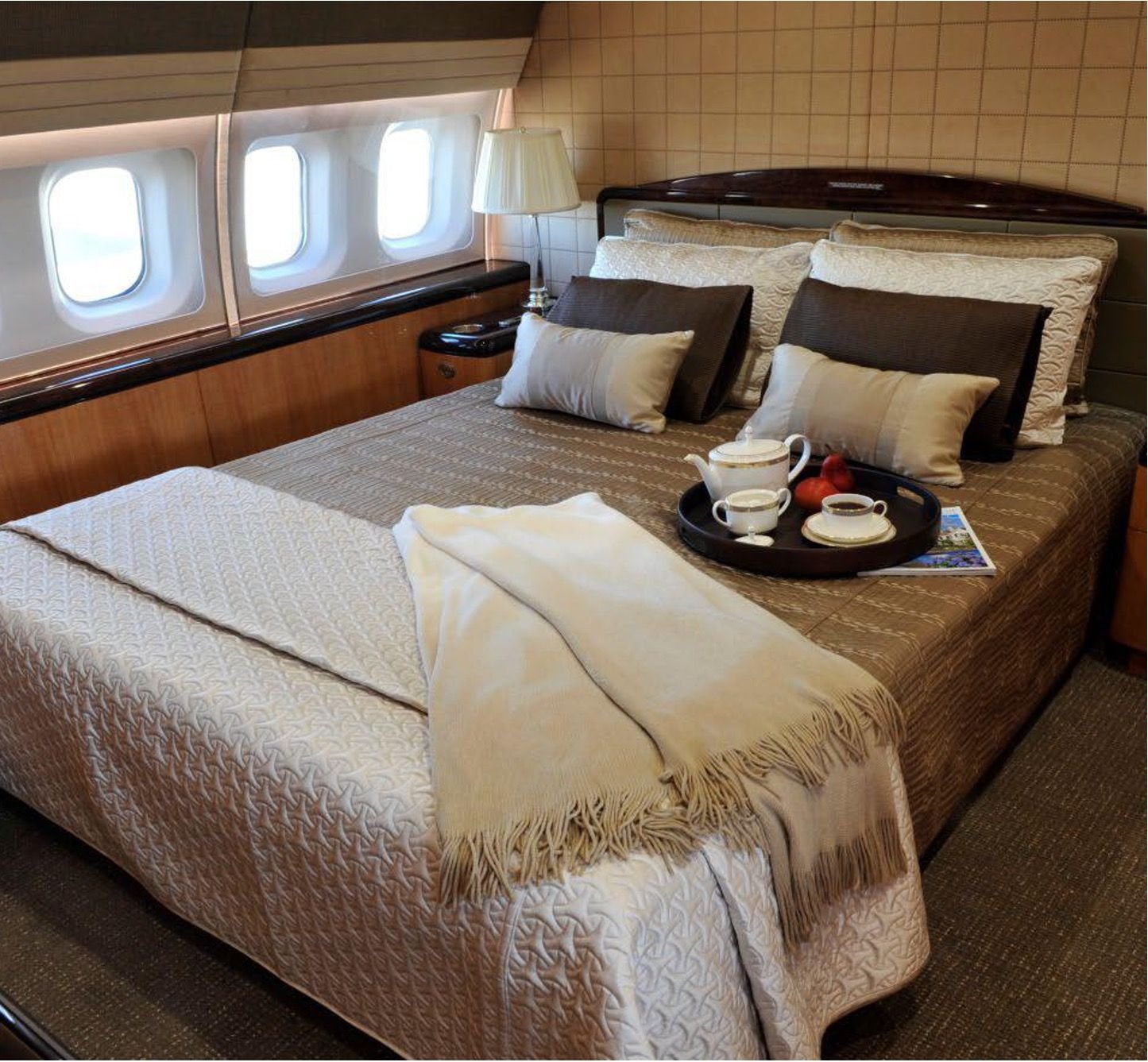

The hallway leads further into the master bedroom area. The master bedroom a full size bed and night tables with reading lights, wardrobe and a 42h flat screen TV/monitor on the aft bulkhead.
The fully equipped aft lavatory is equipped with vanity, toilet and shower
Status de Inspeções
C1 check next due February 2028
C2 check next due February 2032
C3 check next due December 2032
Landing gear overhauled completed in 2020
Low Utilization Maintenance Program (1200H/year max)
