Descrição
AGUSTA/LEONARDO AW119Kx KOALA 2024
Informações Gerais
- Immediate availability (factory deliveries not available until late 2025)

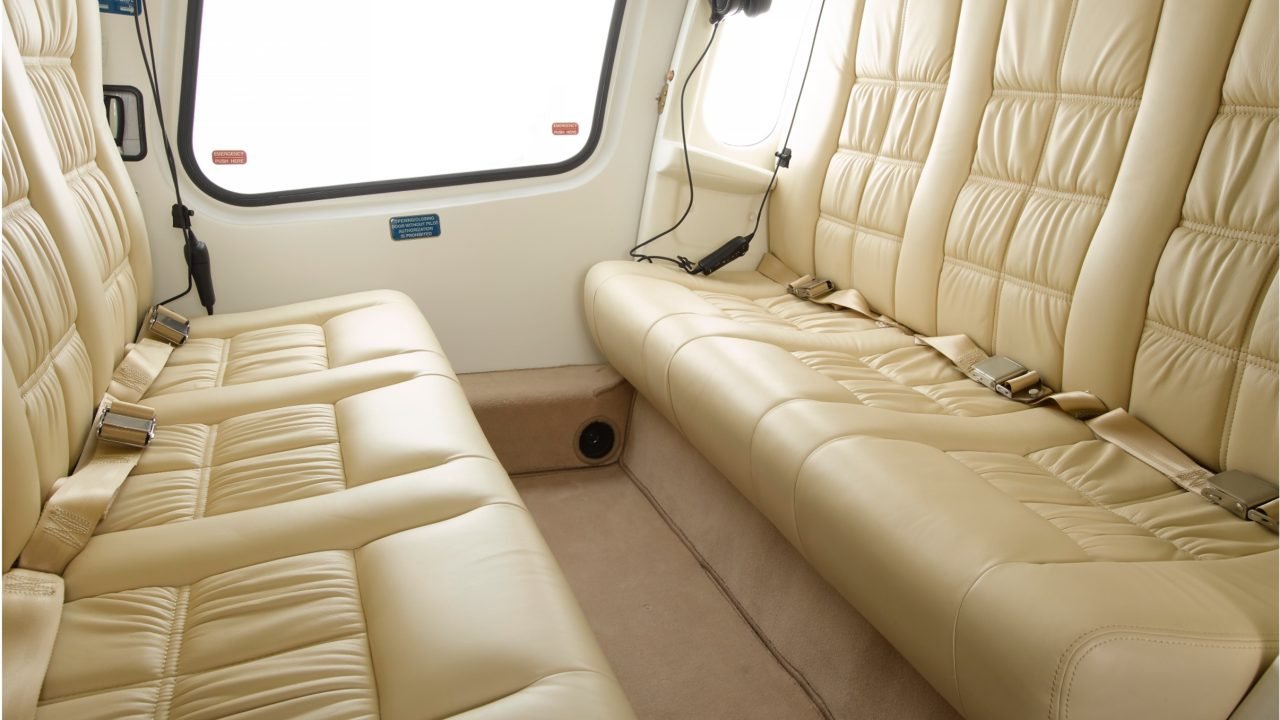

- VIP 6 seat interior (3 fwd / 3 aft)
- Soundproofing / Floor carpeting
- Air conditioning
- 230 US Gallon fuel system
- Baggage compartment extension
- US C of A issued June 24, 2024
- Warranty Commencement Date June 24, 2024
- Warranty Expiration Date June 23, 2027 (or 2,000 Hours)
- 15.5 Total Hours since New
- 64 Total Cycles since New
- No Damage / No Incidents
Célula
Horas totais de célula: 15
- Fuel Capacity Volume 230 gal
- Aluminium alloy and bonded panel fuselage
- Semi-monocoque aluminium alloy tail boom
- Reinforced skid type landing gear – black colour
- Two (2) hinged jettisonable crew doors (LH and RH)
- Two (2) sliding passenger doors (LH and RH), 1.10 m opening, with jettisonable windows
- Passenger short foot step (LH and RH)
- Polycarbonate windshield and side azure coloured windows
- Overhead cockpit azure coloured windows
- Lower cockpit azure coloured windows
- Removable composite tail rotor gearbox fairing
- Quick removable tail rotor drive shaft cover
- Separate baggage compartment with hinged door
- Three (3) jacking points
- Removable fairing and cowlings, for complete accessibility to the controls and drive components
- Quick opening hinged inspection doors, to allow visual check of engine oil levels and maintenance inspection points
- Grounding point
Motores
- Pratt & Whitney Canada PT6B-37A turbo-shaft engine
- Engine mounted fuel pump and filter assembly
- Engine mounted oil pump and filter assembly
- Engine mounted fuel control and governor
- Electronic Engine Control (EEC)
- Lubrication and cooling system
- One (1) engine oil chip detector
- Engine mounted fuel heater
- Fuel system control panel
- 3-cell crash-resistant fuel system
- Submerged fuel pumps (two [2] boost and one [1] transfer pump)
- RH refuelling point
Hélices
- Titanium main rotor hub, corrosion protected, fully articulated with four (4) composite grips, four (4) elastomeric bearings, four (4) individually interchangeable composite material blades, swept tips, and dampers
- Steel tail rotor hub, corrosion protected, semi-rigid delta hinged type, with two (2) composite blades, individually interchangeable
- Cyclic and collective controls powered by two (2) hydraulic systems Hydraulically powered anti-torque system
- Adjustable friction devices on cyclic and collective system
- Force trim and artificial feel system
- Adjustable directional control pedals
- Flapping and droop restraint mechanism
Aviônicos e Rádios

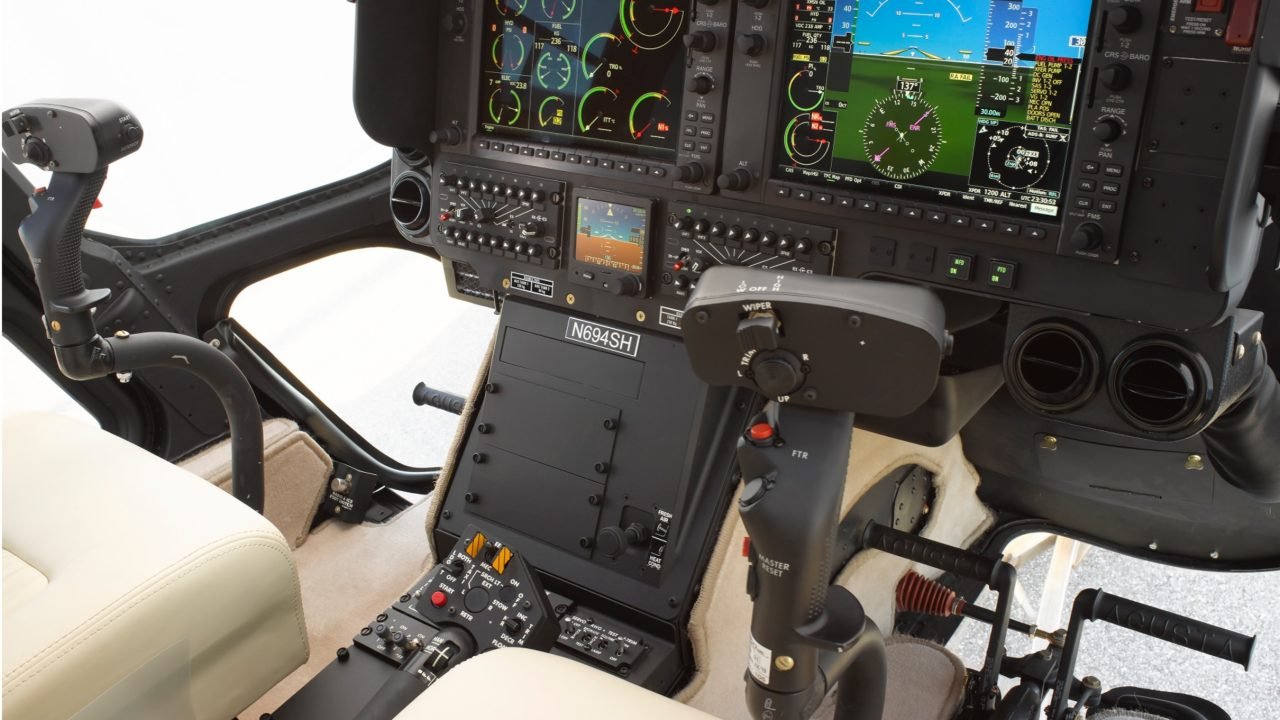

- Garmin G1000NXi Integrated Flight Deck system comprising:
- Two (2) GDU-1050H display units providing a Primary Flight Display (PFD) and a
- Multifunction Display (MFD) and integrating:
- Flight Management System (FMS)
- Synthetic Vision System (SVS)
- Helicopter Terrain Awareness and Warning System (HTAWS)
- Radio tuning controls
- Two (2) GEA-71BH Aircraft Interface Unit
- GRS-7800 AHRS
- GDC-72H Air Data Computer (ADC)
- Two GIA-64H Integrated Avionics Units (IAU) comprising:
- COM 1&2
- NAV 1&2
- GPS 1&2
- Aural Alert Generator
- Transponder GTX-345R Mode-S/ADS-B dual mode 1090 Extended Squitter (ES) ADS-B Out plus 1090 and 978 ADS-B In compliant position source
- (WAAS/GPS)
- Airframe Hour meter
- Central Maintenance Computer (CMC) data logging Radar Altimeter GRA-55
- Digital Audio Control System (DACS) COBHAM with two (2) cockpit panels
- Magnetic Compass indicator
- L3 Avionics System EFD 750 Electronic Standby Indicator
Equipamentos Adicionais
- Baggage compartment extension (1.9 m): It may be affected by avionic customization
- Dual controls
- Fuel cap with key-lock
- Reinforced windshields (pilot and co-pilot)
- Rotor brake
- Sliding windows on cockpit doors
- Windshield wipers (pilot and co-pilot) with wiper switch on cyclic grips
- Hourmeter (engine run-time)
- Pulsed chip detectors: In lieu of quick disconnecting chip detectors.
Exterior
• Standard painting and finishing
• Up to 4 colours from LHD selection
• painting scheme and finishing from LHD selection
• Registration marks and logos (decal)
Interior
Number of Seats 6
Interior Notes
• Pilot and co-pilot seats, fore and aft adjustable, with lap belts and headrests
• Aluminium alloy honeycomb reinforced floor with anti-skid finishing
• Ventilation ram air inlets
• Anti-reflection instrument panel
