GULFSTREAM G550 2004
Informações Gerais
Hours Since New: 5,182h
Engines on JSSI Pro Rata, APU on JSSI, Avionics on MSP
Four Owners – U.S. Based Since New High ASC Compliance Status including 88 Parameter FDR Aft Galley / Forward Crew Rest /14 Passenger Configuration
FANS / Synthętic Vision / Enhanced Nav / RAAS
KA Band WiFi
Célula
Horas totais de célula: 5.182h
C of A Date: September 22, 2003
In-Service Date: June 29, 2004
Total Time: 5,182
Total Landings: 2,552
Location: Ft. Lauderdale, FL (KFXE)
Motores
Horas Totais (TTSN): (1) 5.182h
Horas Totais (TTSN): (2) 5.182h
Description Rolls Royce BR700-710C4-11
Program JSSI Prorated (see Exhibit C for coverages)
Engine #1 Engine #2
Serial No. 15145 15144
Total Time Since New 5,182 5,182
Cycles 2,552 2,552
APU
Description Honeywell RE220 (G550)
Program JSSI
Serial No. P-331
Total Time Since New 3,525
Aviônicos e Rádios

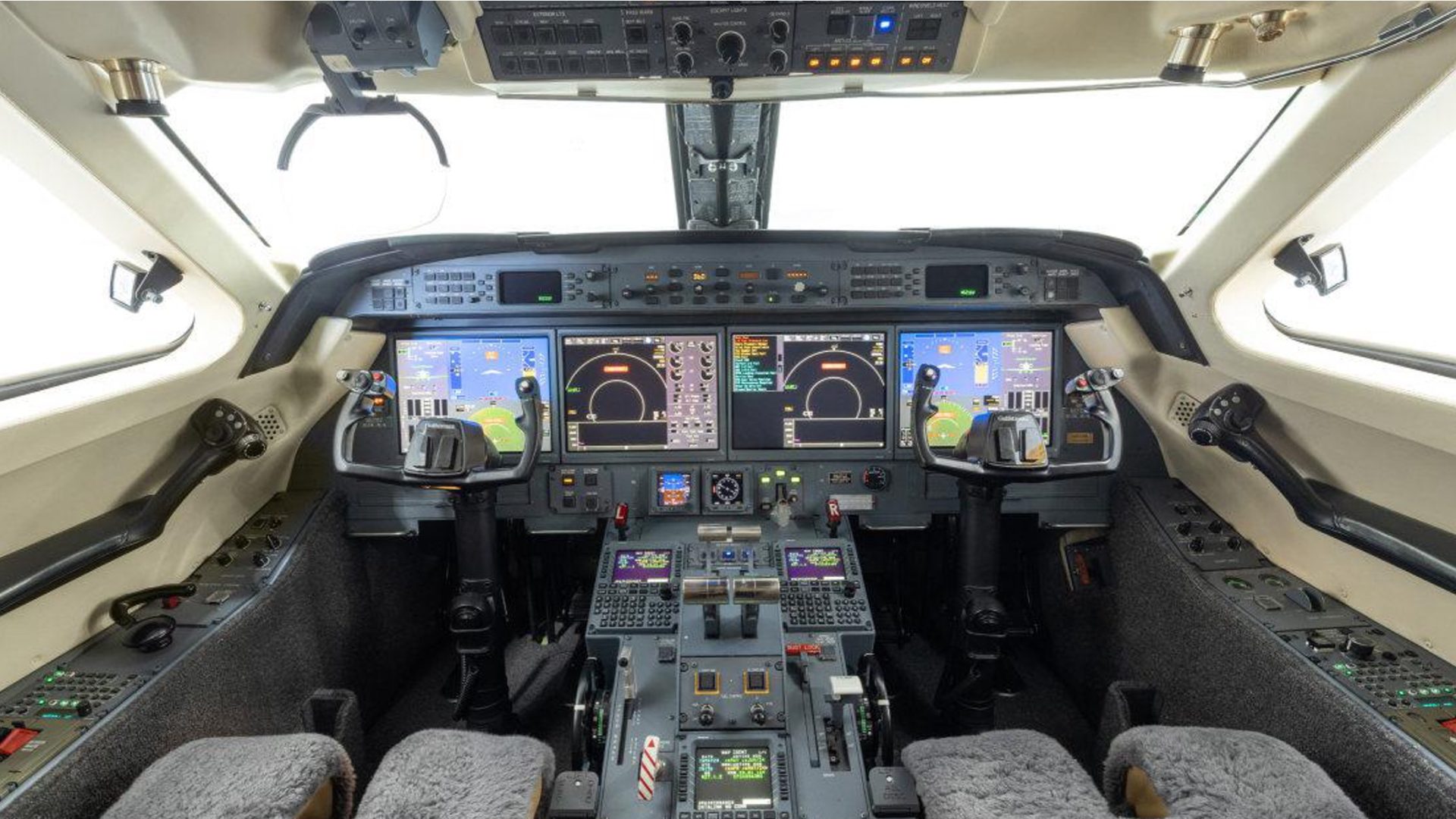

- Avionics Package Honeywell Primus Epic PlaneView
- CDU (Cockpit Display Units) Four Honeywell DU 1310
- HUD (Heads Up Display) Honeywell
- EVS (Enhanced Vision System) Kollsman
- FMS (Flight Management System) Triple Honeywell NZ-2000
- IRS (Inertial Reference System) Triple Honeywell LASEREF V
- GPS (Global Positioning System) Dual Honeywell Modules
- NAV (Navigation) Triple Honeywell NV-855
- VHF COM (Very High Freq. Communications) Triple Honeywell TR-865
- DME (Distance Measuring Equipment) Dual Honeywell DM-855
- ADF (Automatic Direction Finder) Dual Honeywell DF-855
- XPONDR (Transponder) Dual Honeywell XS-855
- TCAS (Traffic Collision Avoidance System) Honeywell TCAS-2000 v 7.1
- HF COM (High Freq. Communications) Dual Collins HF-9034A
- EGPWS (Enhanced Ground Proximity Warning System) Dual Honeywell Mark V
- MAU (Modular Avionics Unit) Triple Honeywell
- AUTOPILOT Honeywell
- ADU (Air Data Unit) Triple Honeywell AZ-200
- AP (Audio Panels) Triple Honeywell
- WX RADAR (Weather Radar) Honeywell WU-880
- RADIO ALT (Radio Altimeter) Dual Honeywell RT-300
- FDR (Flight Data Recorder) L3 (88 parameters)
- CVR (Cockpit Voice Recorder) L3
- AFIS (Automatic Flight Information Service) Honeywell AIS-1000
Avionics on MSP Avionics Program
Equipamentos Adicionais
- Lopresti Boombeam Taxi and Landing Lights
- ACA Ionization Units
- LED Lights in Baggage and Aft Equipment Bay
- Collins Airshow 500
- Two DVD Players
- 17” LCD Monitor in Forward Bulkhead
- 17” LCD Monitor Above Credenza
- Seven 5.6” LCD Individual Monitors
- Satcom Direct Iridium Satcom
- AirCell ATG-5000 High-Speed Internet
- Honeywell Jetwave Ka-band Satellite High-Speed Internet
Modificações
ASC 002D 88 Parameter DFDR
ASC 049 Lightning Sensor
ASC 053A ARINC Direct-Datalink
ASC 061B Synthetic Vision
ASC 065 Runway Awareness Advisory
ASC 071A Micro Quick Access Recorder
ASC 84B Enhanced Navigation
ASC 085A XM WEATHER
ASC 096 CPDLC – FANS 1/A
ASC 103 TCAS 7.1
ASC 105 ADS-B Out
ASC 912B Planeview Software Update
Exterior
Pintura refeita em: 2020

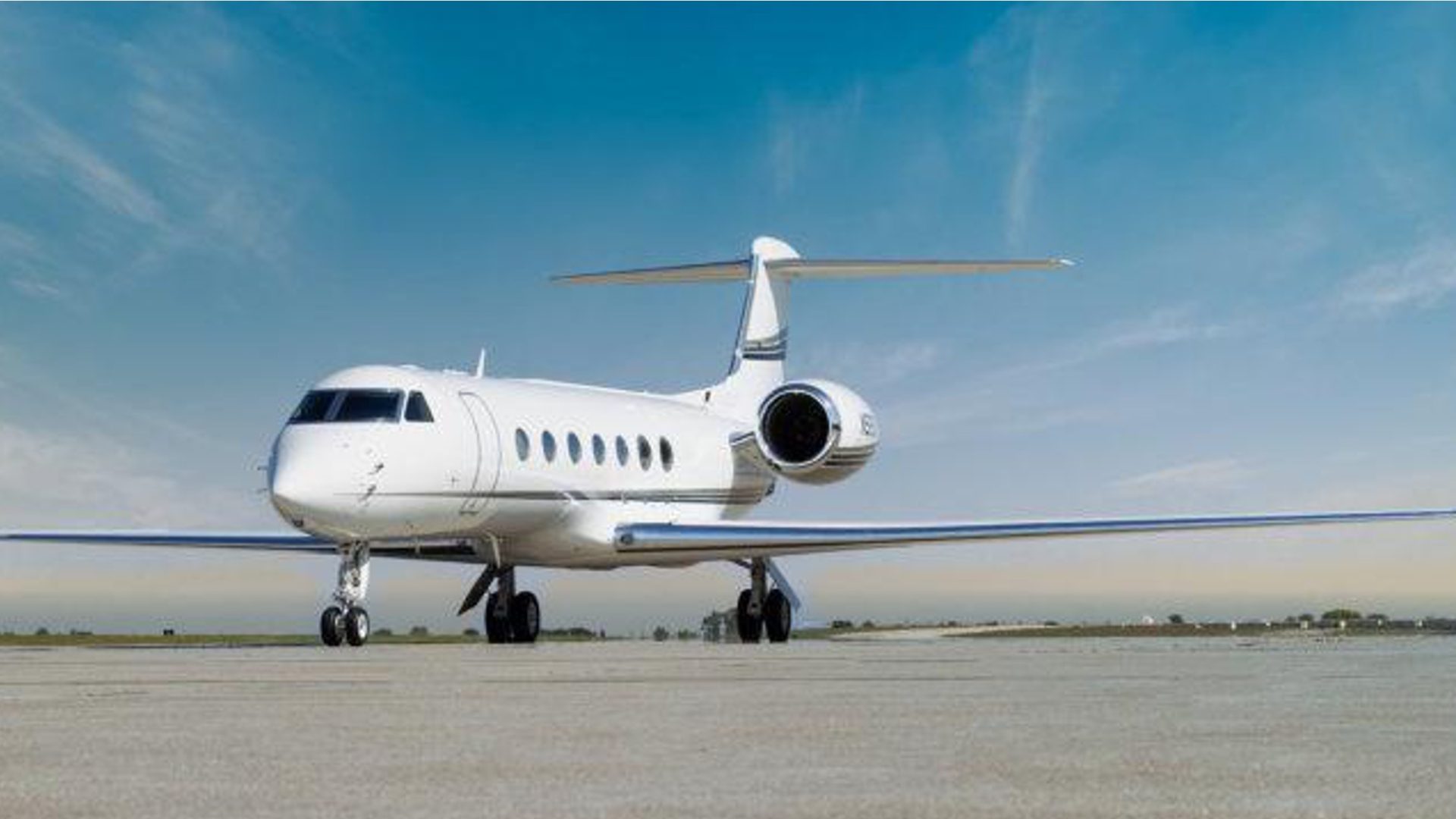

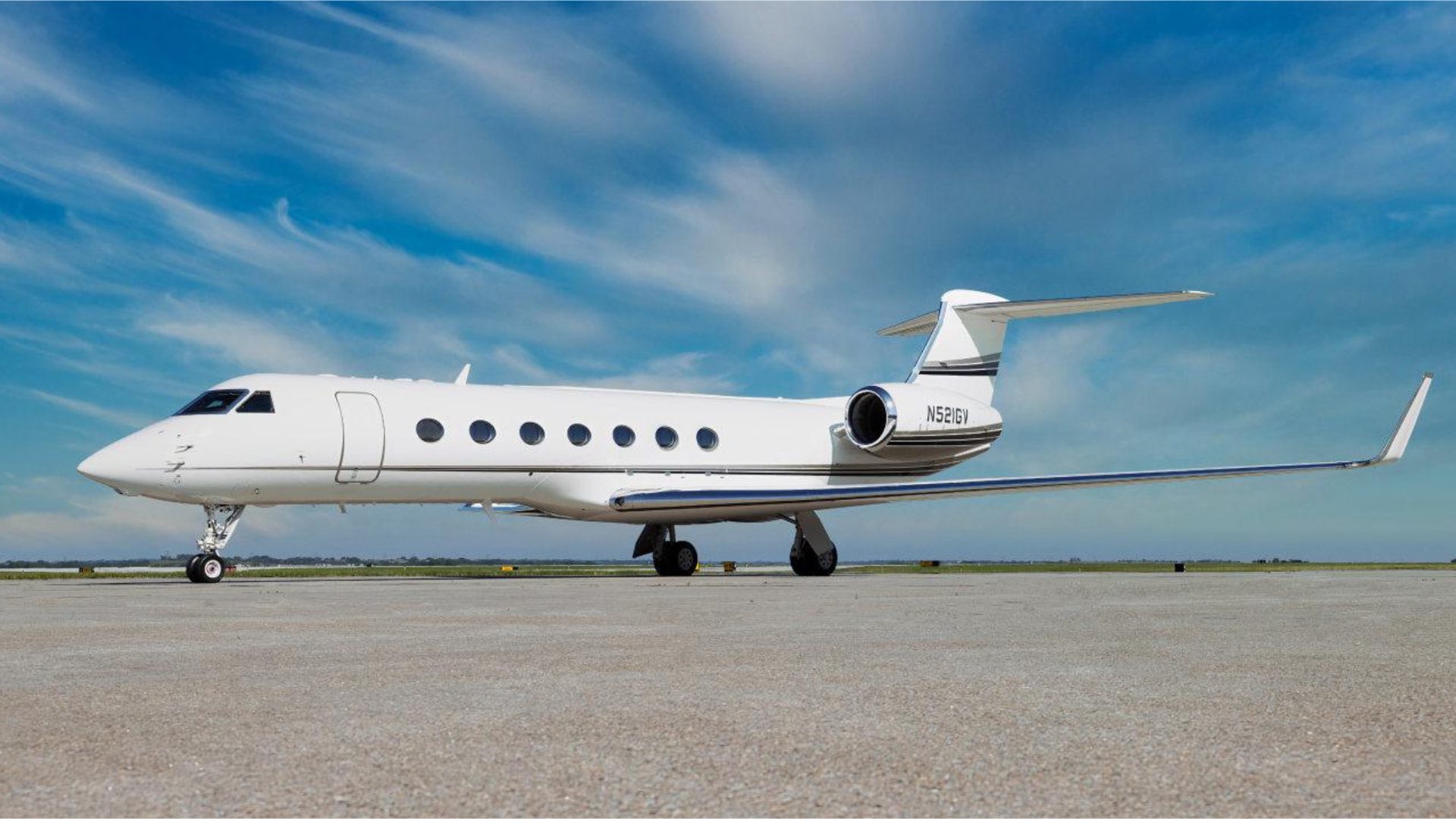

Snow White Fuselage with Castle Silver, Charcoal Gray, and Black Velvet Stripes. Completed by Gulfstream, August 2020. Excellent condition.
Interior
Interior refeito em: 2026

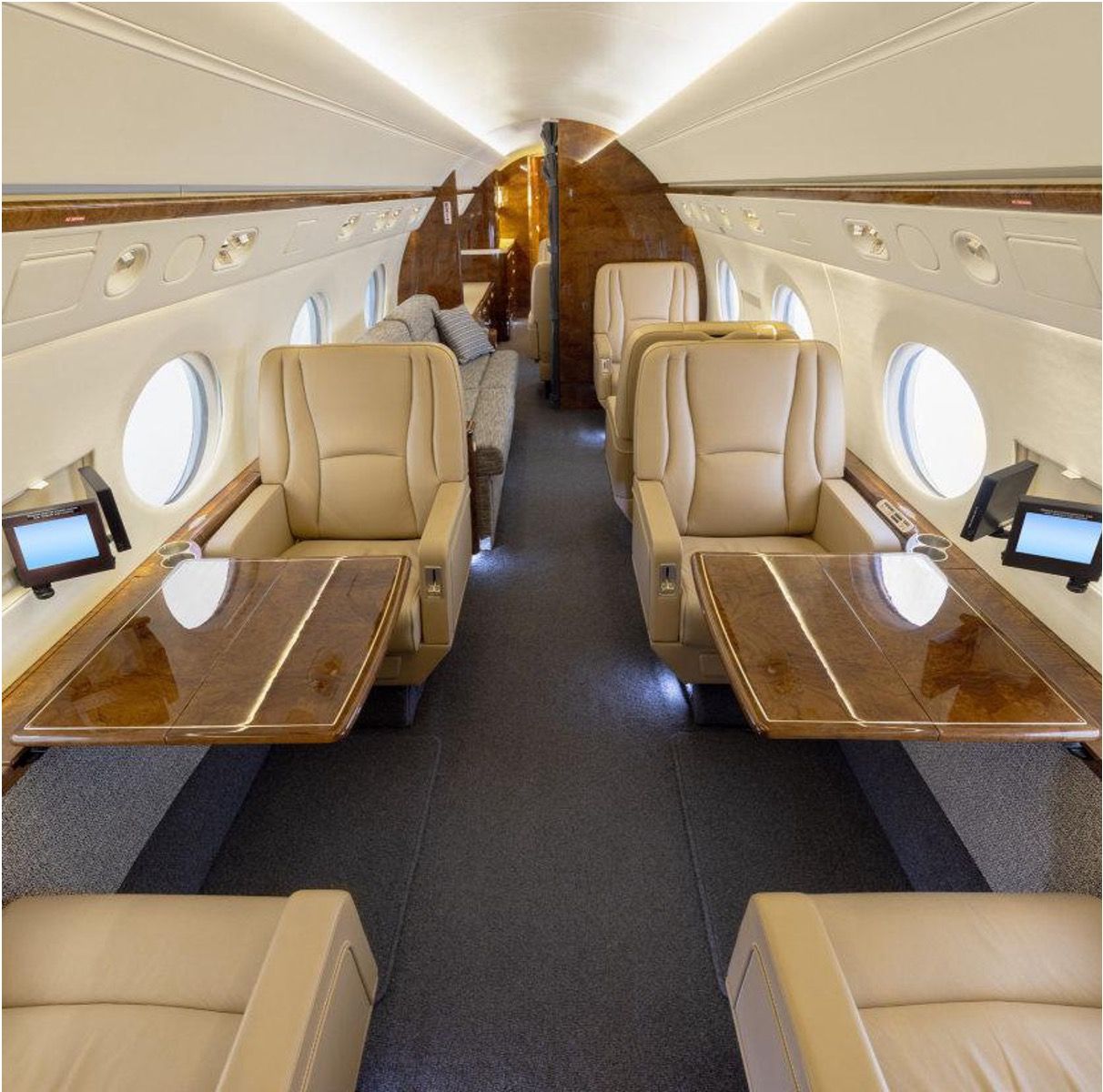

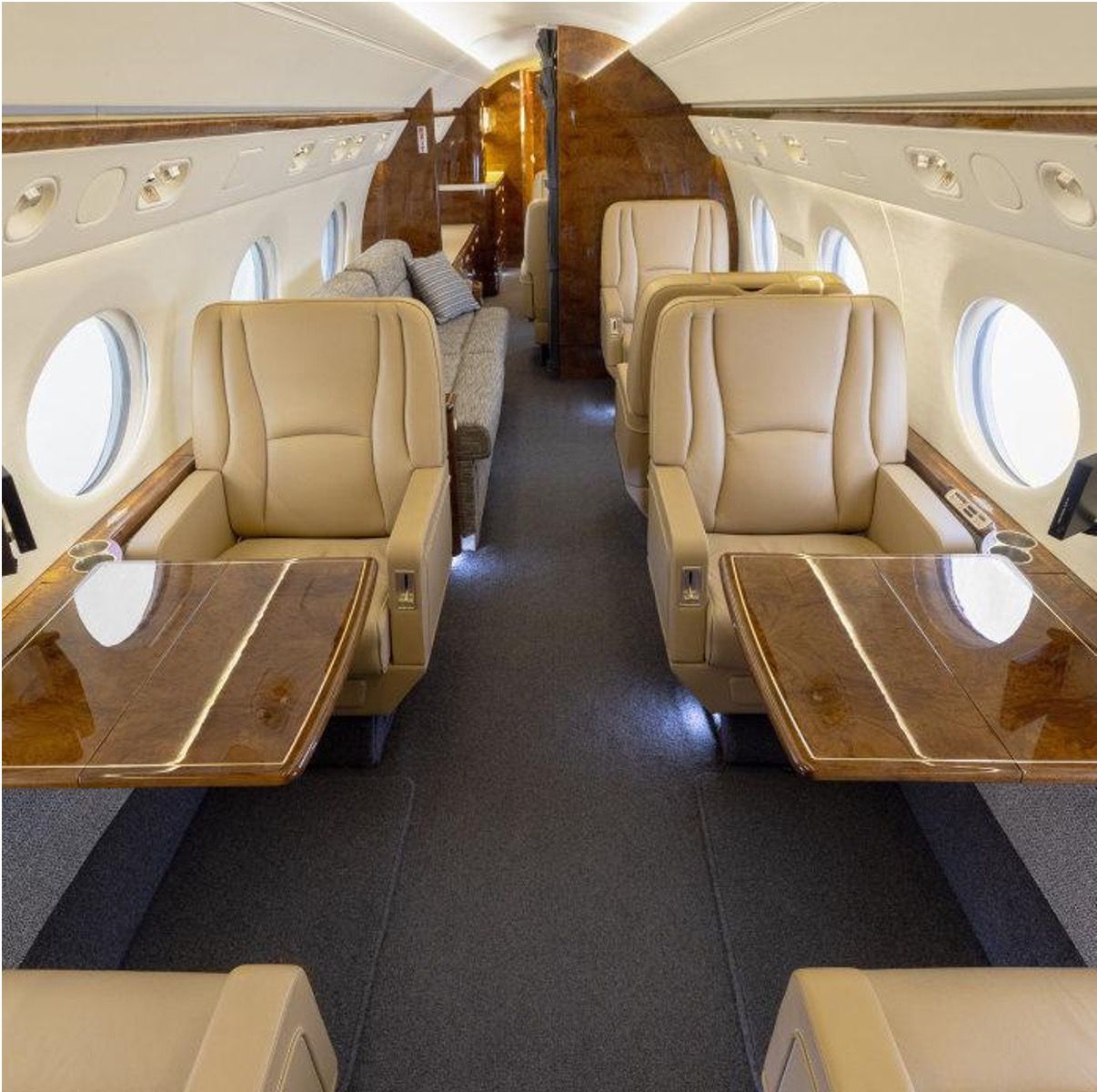

PASSENGERS: 14

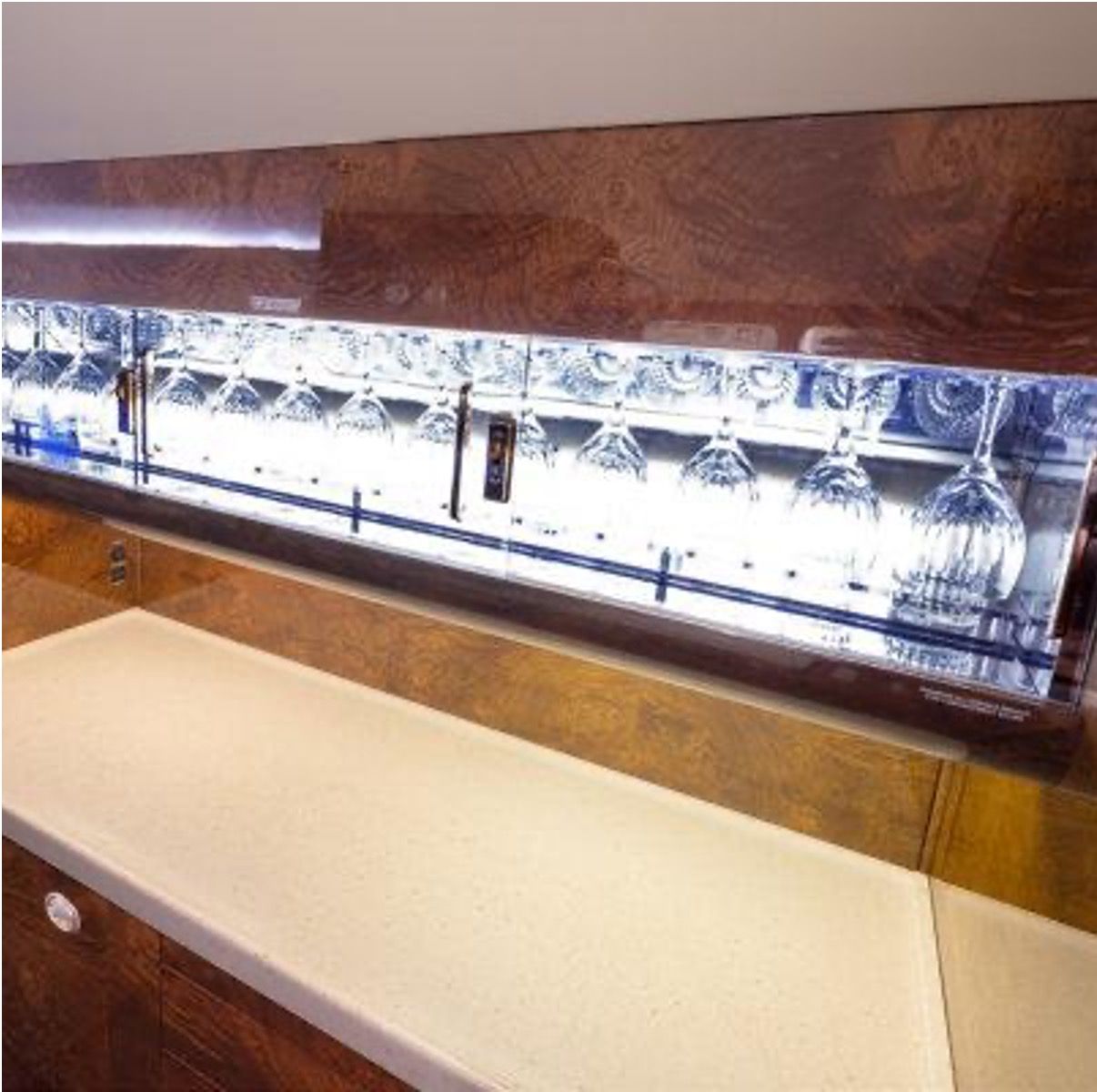

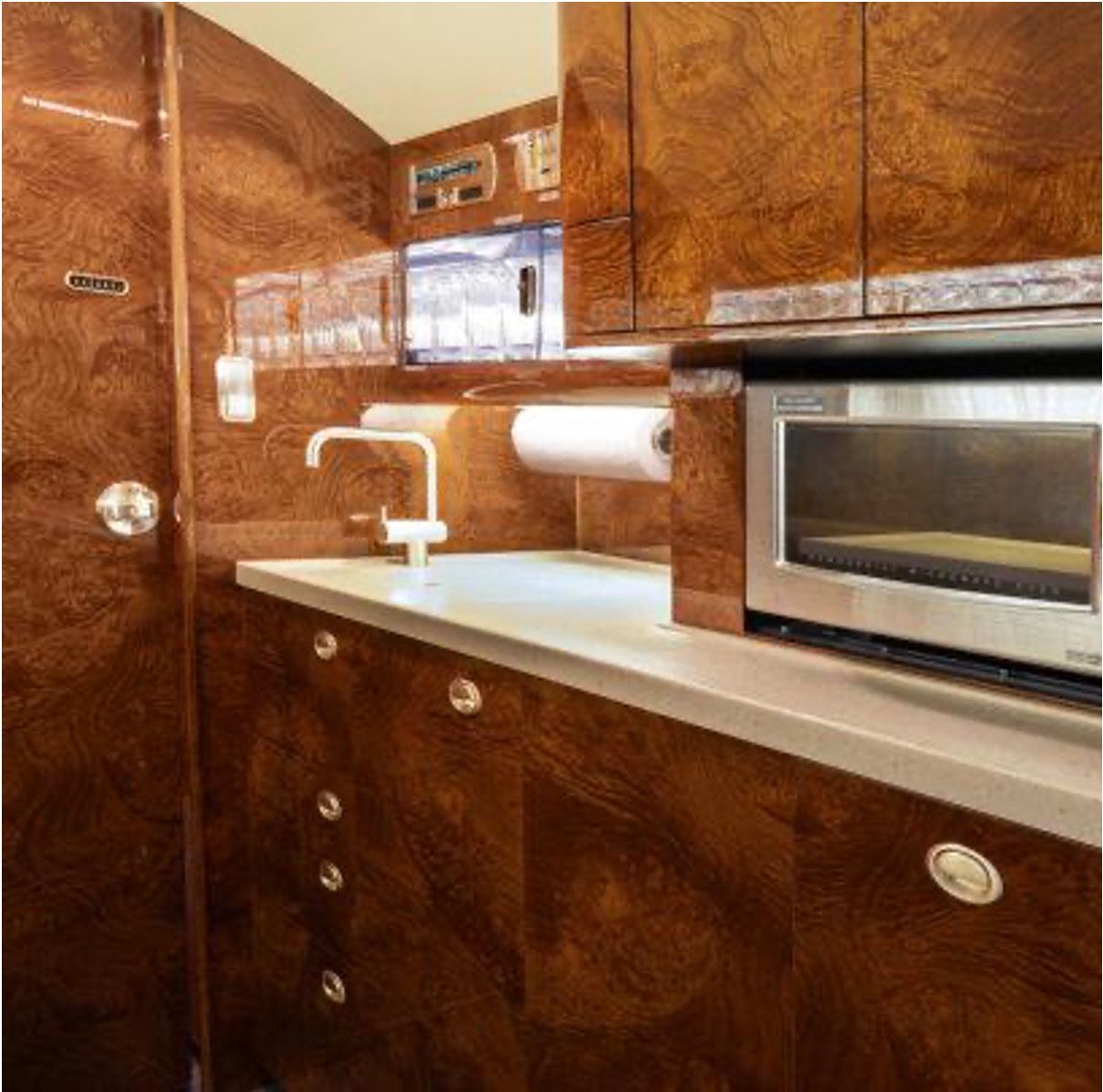

GALLEY LOCATION: Aft
CREW REST AREA: Forward

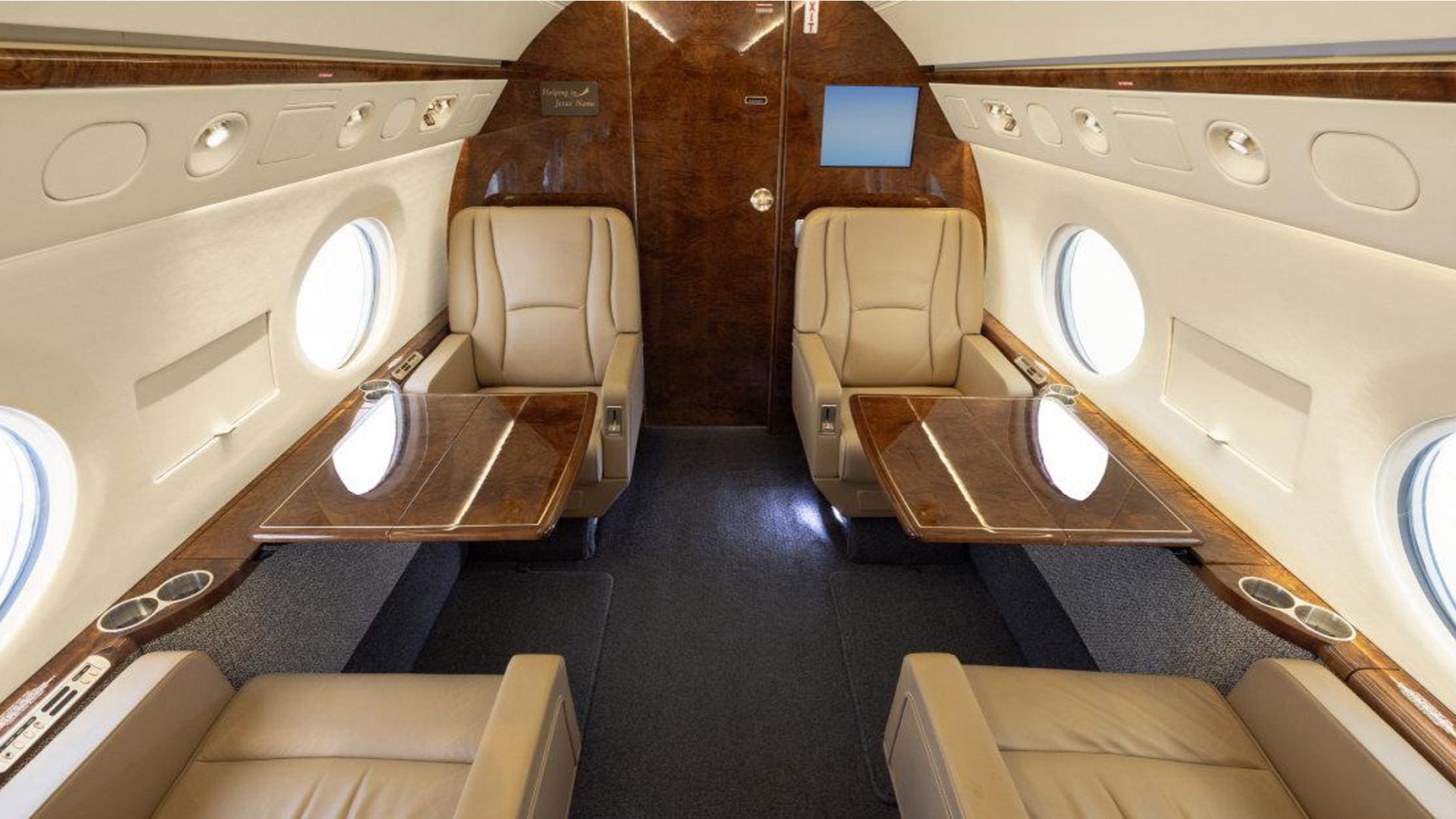

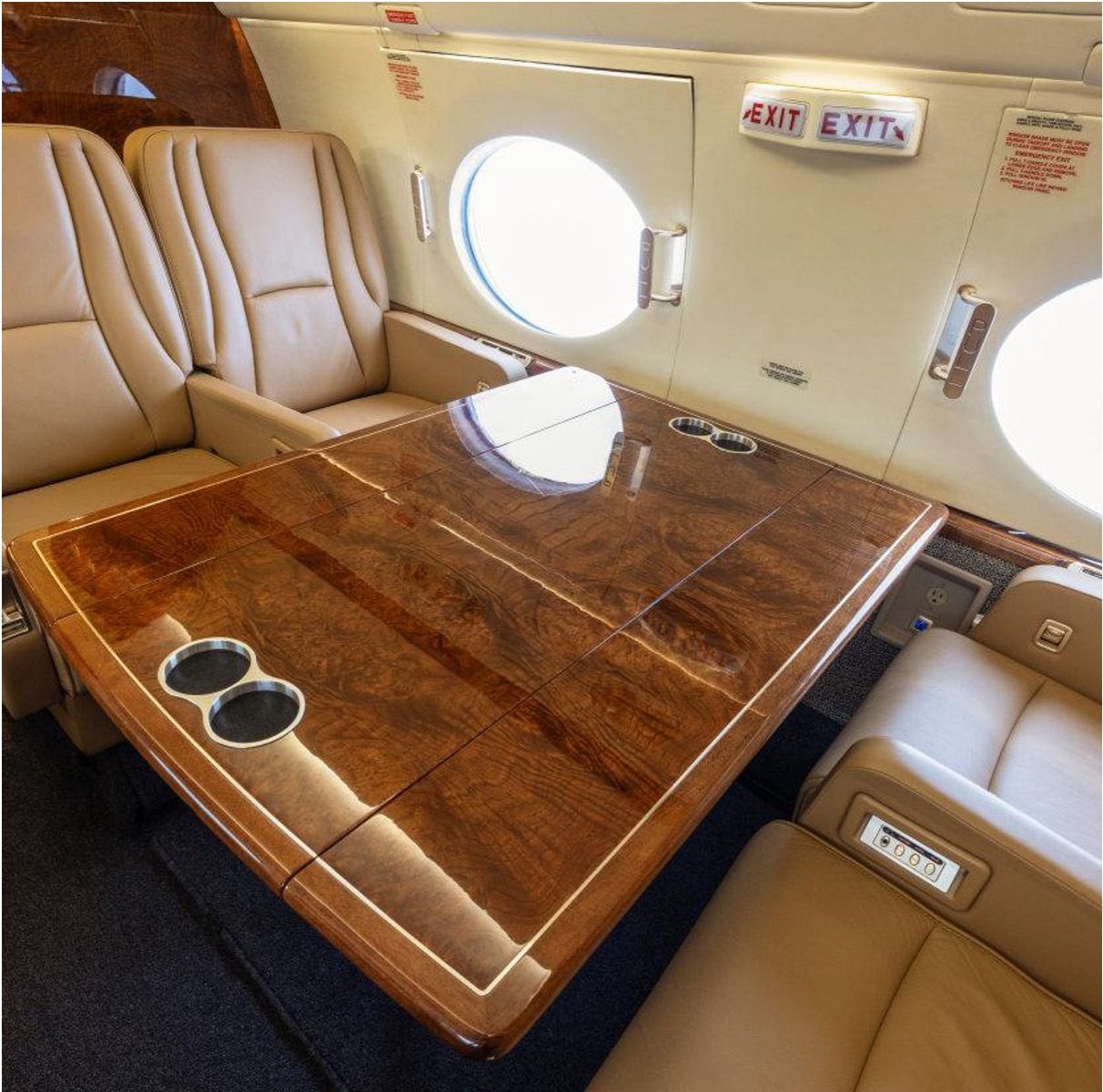

FORWARD CONFIGURATION: 4 Club Seats

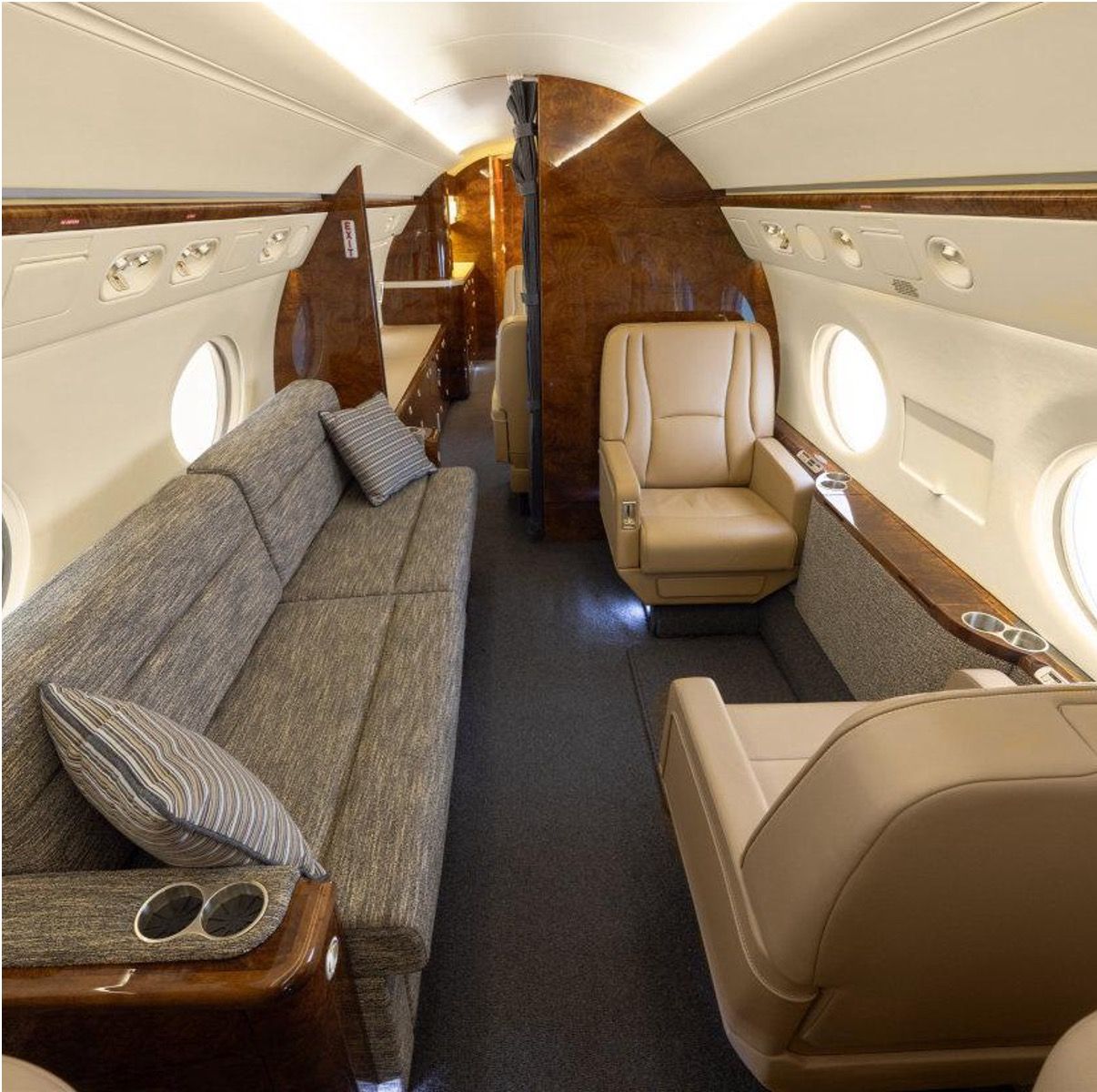

MID CONFIGURATION: 2 Club Seats opposite 4-Place Divan Mid-Cabin Bulkhead
AFT CONFIGURATION: 4 Club Seats opposite Credenza

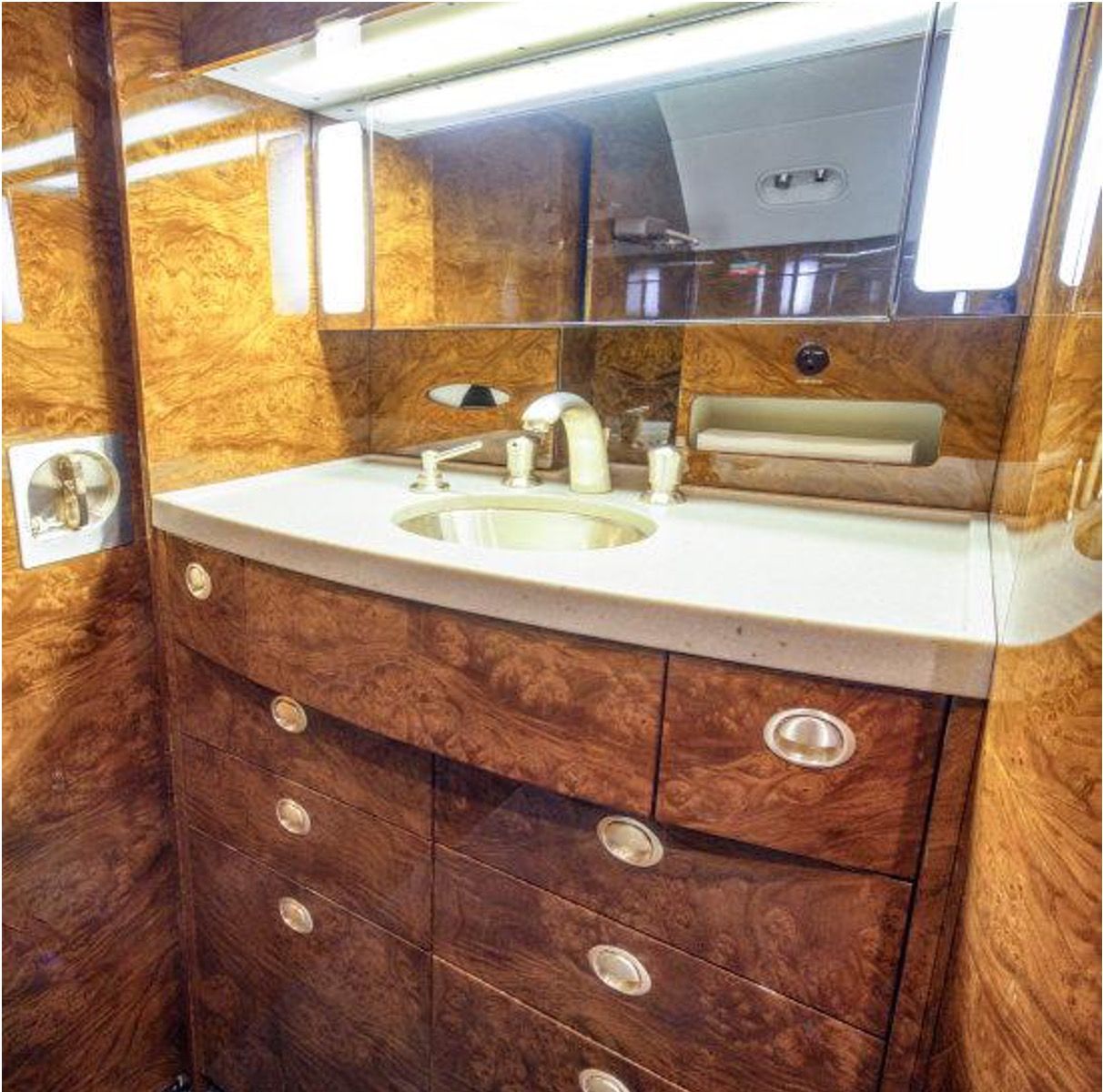

LAVATORY: Forward & Aft
NOTABLE FEATURES
Innovative Advantage High-Definition AVDS CMS
Twelve USB Charging Ports
High Temp Oven
Microwave Oven
Two Coffee Makers
Vacuum Operated Fwd & Aft Lavatories
MATERIALS
Seats are Dark Beige leather, Divan Is Charcoal fabric, Headliner & Window panels are completed with Almond ultra leather, carpet is a low level loop in a Heathered Charcoal color. The wood veneer is Chestnut Burl with a Warm Medium Brown high gloss finish. Plating throughout is a subtle Satin Almond Gold finish. Completed by Duncan Aviation, November 2020.
Excellent condition.
Status de Inspeções
96/192-Month complied with April 2020 by Gulfstream.
48-Month complied with March 2024.
Premium ARCS c/w 2025 at Gulfstream, Savannah
12/24 Month Checks in Progress at Gulfstream, Palm Beach
